Innovative Interfaces


mioXM™

More connectivity than you can shake a stick at.

With mioXM™ it’s never been easier to get all of your MIDI gear talking to each other. Harness the power of our advanced computer and network connectivity and experience why mioXM redefines what a MIDI interface can and should do.

Connect all your MIDI devices (USB-MIDI, DIN-MIDI, RTP/Network-MIDI) and let this rugged, versatile interface put you in control of your MIDI devices and workflow.

On stage or in the studio, RTP/Network-MIDI capability means you are no longer constrained by cable length or limited USB ports. Stack multiple interfaces and computers on a network for ultimate scalability and flexibility.

With mioXM, you’re able to streamline and expand your MIDI setup, and do it faster, better, and in creative and exciting new ways.




MSRP - $299.99 USD
Est. Street Price: $249.99 USD

mioXM
mioXM
$249.99

mioXM™ makes it easier than ever before to get all of your MIDI gear to talk to each other. Harness the power of our advanced computer and network connectivity and experience why mioXM redefines what a MIDI interface can and should do.

Connect all your MIDI devices (USB-MIDI, DIN-MIDI, Ethernet-MIDI) and let this rugged, versatile interface put you in control of your MIDI devices and workflow.

On stage or in the studio, Ethernet-MIDI capability means you are no longer constrained by cable length or limited USB ports. Stack multiple interfaces and computers on a network for ultimate scalability and flexibility.

With mioXM you’re able to streamline and expand your MIDI setup, and do it faster, better, and in creative and exciting new ways.

Leanr more about mioXM


Please note the “Add To Cart” buttons on this page are for customers based in the Americas. European customers, please find our European webshop here




What makes mioXM™ unique? The iConnectivity difference.


mioXM’s network connectivity lets you put MIDI connectivity wherever you need it

Powerful network MIDI capabilities:

  • Network connectivity means MIDI wherever you need it. Regular USB connectivity limits you to keeping your interface within 15ft of your computer. Network / Ethernet connectivity gives you up to 330ft / 100m connection between you and your interface.
    Drop an interface in every room of your studio, or place an interface virtually anywhere in a venue.

  • RTP/Network-MIDI is not bound by some of the same restrictions as USB-MIDI.

    • Easy renaming of network ports -  have them show up the way you want them to in your DAW.

    • Access to more than12 ports per interface.

  • Our unique network technology is as easy to use as USB! Enjoy your new-found MIDI power without extra headaches.

  • Use your 12 network MIDI ports anyway you want. Connect each of the 12 RTP-MIDI sessions to any combination of physical or virtual I/O ports. Almost any combination is possible.

Configuring mioXM:

Introducing a new version of our Auracle control software: taking the simplicity of workflow that the original Auracle introduced but now with the added deep configuration functionality that we’ve become known for. All the deep configuration options you asked for: MIDI merging, filtering, remapping, and deep routing are all there and super easy to use.

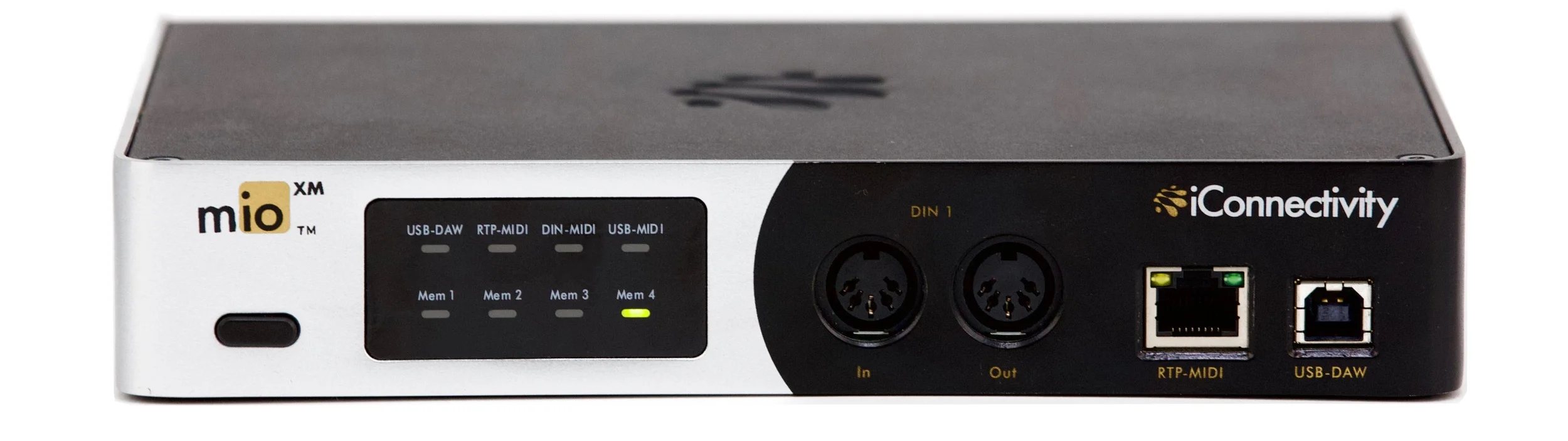

mioXM’s touch control pannel lets you easily switch between presets and monitor your MIDI traffic


Presets onboard:

Need to configure your MIDI setup in multiple ways? No problem!
Store and recall up to 4 presets directly on the interface, without even needing a computer!

Easily recall unique MIDI routing, filter and merging setups to preset scenes, all from the front of mioXM.



Key features



  • 4 in x 4 out 5-pin DIN-MIDI ports

  • 4x USB-MIDI Host ports support multiple USB-MIDI CLASS COMPLIANT devices

  • Ethernet RTP-MIDI Network port - 12 virtual network ports can easily be assigned to onboard DIN and USB ports as well as any other connected computing devices. These make all MIDI devices accessible to Mac, PC, and mobile computing devices via a single cable.

  • Connect multiple computers via expandable virtual network ports

  • USB Computer port supporting Mac & Windows connectivity

  • Plug and Play - no drivers required thanks to class compliant connectivity

  • Capacitive touch control panel

  • Up to four user-definable presets can be stored and recalled from mioXM’s control panel

  • iConnectivity’s Auracle 2.0™ configuration software (downloadable for Mac & Windows) makes it simple to create and save filtering/routing/merging presets

  • Connect iOS devices via CCK to mioXM’s USB device port, Wi-Fi (using 3rd party Wi-Fi ethernet hub), or wired ethernet connections



What's in the box

  • 1 x mioXM

  • 1 x USB cable

  • 1x Ethernet cable

  • 1 x mioXM 12V 36W Power Power Supply with interchangeable blades (NA, EU, UK and AU (Australia only)).

Features of mioXM are patented.
Product features are subject to change.

mioXM User Resources



Device Specifications



Width

214 mm
8.43 in



Height (1U)

37 mm
1.46 in



Depth

140 mm
5.51 in



Weight

992g
2.13 lbs

mioXM fits comfortably in iConnectivity’s iCRS Interface Rack Shelf

System Requirements



Macintosh

Mac OS X 10.13 or greater
1 free ethernet or USB port




Windows

Windows 10 or greater
1 free ethernet or USB port

iOS

iOS 8 or greater with Camera Connection Kit (CCK)*
CoreMIDI compatible app



*Camera Connection Kit (CCK) (sold separately)
