One Interface To Connect It All!




MSRP - $349.99 USD
Est. Street Price: $299.99 USD

Quantity:
Add To Cart



Plug everything into one interface – your computers and iOS devices, high-res audio, MIDI, USB, 5-pin MIDI, mics, instruments, speakers, headphones…the iConnectAUDIO4+ integrates it all seamlessly. And it sounds amazing.

From iConnectivity comes the world’s first audio and MIDI interface to support multiple iOS/PC/Mac computers at the same time. Make your iPad a touch-controlled plug-in in your DAW. Send dozens of MIDI and digital audio channels back and forth between two computers. Or run and record your entire studio from your iOS/PC/Mac by itself. It all becomes one integrated music machine.




What Makes iConnectAUDIO4+ Unique?

Other audio interfaces: Simple analog in and out, maybe MIDI in and out as an afterthought. Support for only one computer.

The iConnectAUDIO4+ difference

  • More power to create:
    Designed for the way you work.
    Create with all your vintage and modern gear. And your mics, instruments, and synths.
    Use your 5-pin MIDI DIN gear, your USB MIDI gear, and route MIDI and audio everywhere. Sync everything without cables.
  • More flexible workflow:
    Designed for the way you work. Create with all your vintage and modern gear. And your mics, instruments, and synths.
    Use your 5-pin MIDI DIN gear, your USB MIDI gear, and route MIDI and audio everywhere. Sync everything without extra cables.
    It's the iConnectivity flexible workflow.


Key features


  • Audio and MIDI passThru routes audio digitally between two computing devices
  • Standalone computer-less operation – mix/merge audio and host 5 pin DIN + USB class compliant MIDI

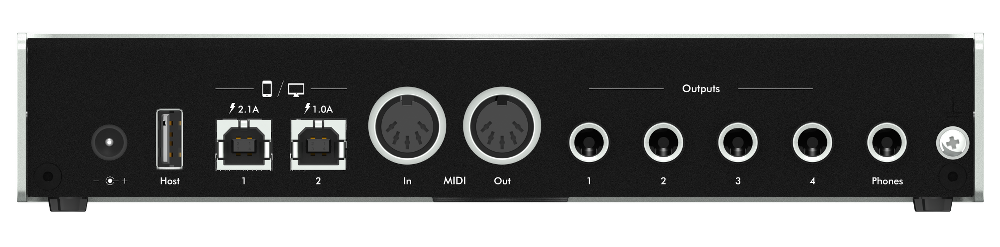

  • 1 X 1 regular 5 pin DIN MIDI in/out
  • 29 routable MIDI ports: Mac, PC, iOS, 5 pin MIDI DIN and class compliant USB MIDI devices
  • Comprehensive audio mixing and routing between connected USB computing devices and analog outputs
  • High-resolution audio - up to 24-bit/96kHz AD/DA conversion
  • Capacitive touch user controls
  • Charges an iOS device
  • Multi-host Device ports – use 2 computer devices (Mac/PC/iOS) at the same time
  • Host port for connecting up to 8 MIDI peripherals (with Class-compliant devices connected to a powered hub)

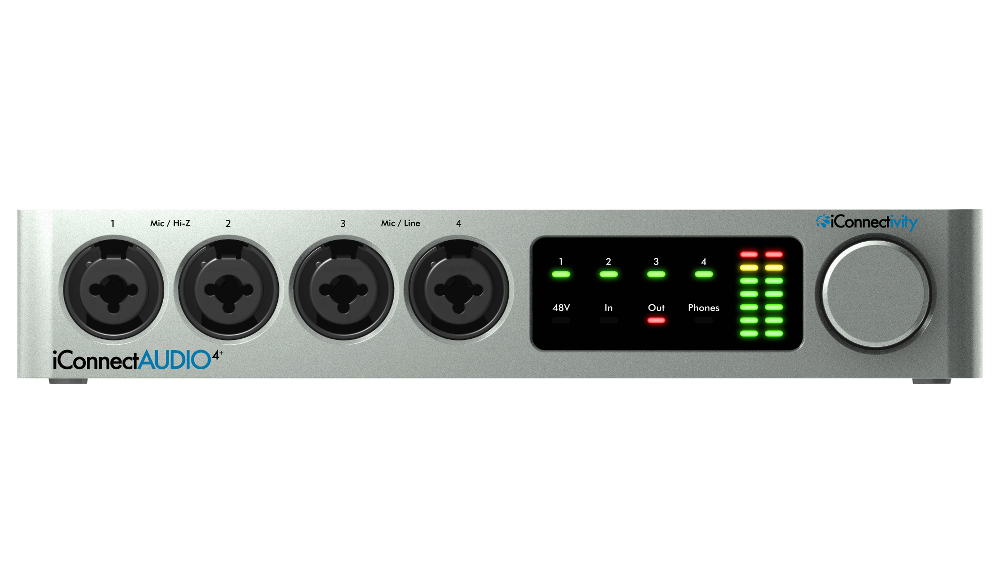

  • 4 XLR – ¼” TRS combo analog inputs
  • 4 Premium microphone preamplifiers with 48v phantom power
  • 4 ¼” TRS balanced analog outputs
  • ¼” Headphone output with independent mix
  • iConfig software (Mac, Windows, iOS) makes it simple to set up filtering/routing/merging scenes – which are also stored in flash memory on the device

The features of iConnectAUDIO4+ are patented and patent pending. See www.iConnectivity.com/patents for more information.

Product features are subject to change. iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iConnectivity, iConnectMIDI, iConnectAUDIO, ConnectAUDIO and Audio passThru are trademarks of iKingdom Corp. Copyright (c) iKingdom Corp. 2017




What's in the box

  • The iConnectAUDIO4+ Audio + MIDI interface
  • 1 Lightning-to-iConnectivity USB-B inline connection cable for an iOS device that uses this connector
  • 1 USB-A to USB-B cable to connect the interface to a Mac or PC computer
  • One 12V/3A (36W) center positive iConnectAUDIO4+ power supply.

Bundled software & sounds


Live 9 Lite is a customized version of the music making software Ableton Live. With selected instruments and effects plus all the essential workflows of Live, it provides a fresh and easy way to write music, record audio and produce your own songs.



Big Fish Audio is a developer and distributor of premium virtual instruments, samples, and loop content. iConnectivity is proud to include a special sampler of Big Fish Audio samples and loops that's perfect to jumpstart or augment your production when you register your iConnectivity audio interface.



iConnectAUDIO4+ Audio Specifications

Microphone Inputs

  • Gain: 0- 60 dB (1 dB steps)
  • Frequency Response: 20 Hz - 20kHz
  • SNR: 110dB (1kHz, 1.2 Vrms, BW: 22Hz-22kHz, A-weighting, Unity Gain)
  • THD+N: -99 dB (1kHz, 1.2 Vrms, BW: 22Hz-22kHz, A-weighting, Unity Gain)

Line Outputs

  • Maximum Output Level: 13 dBu, 11 dBV, 3.6 Vrms
  • SNR: 115 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -112 dB (1kHz, BW: 22Hz-22kHz, A-weighting)

Line Inputs (Balanced)

  • Frequency Response: 20 Hz - 20kHz
  • SNR: 111 dB (1kHz, 10 Vrms, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -99 dB (1kHz, 1.2 Vrms, BW: 22Hz-22kHz, A-weighting)
  • Maximum input level: 11 Vrms, 23 dBu, 21 dBV (1kHz, BW: 22Hz-22kHz, A-weighting, 1% THD+N, SNR=116 dB)

Headphone

  • SNR: 100 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -100 dB (1kHz, BW: 22Hz-22kHz, A-weighting)
  • Power output into 30 Ohms per channel: 73 mW per channel

Instrument Inputs

  • Frequency Response: 20 Hz - 20kHz
  • SNR: 95 dB (1kHz, 5 Vrms, BW: 22Hz-22kHz, A-weighting)
  • THD+N: -92 dB (1kHz, 5 Vrms, BW: 22Hz-22kHz, A-weighting)
  • Maximum input level: 10 Vrms, 22 dBu, 20 dBV (1kHz, BW: 22Hz-22kHz, A-weighting, 1% THD+N, SNR= 94 dB)

Digital Performance

  • 24-bit resolution
  • A-D Dynamic Range:102dB (Single-ended)
  • D-A Dynamic Range:106dB
  • Supported sample rates: 44.1 kHz, 48 kHz, and 96 kHz

iConnectAUDIO4+ User Resources




Device Specifications



Width

214 mm
8.43 in

Height

37 mm
1.46 in

Depth

140 mm
5.51 in

Weight

965 g
2.13 lbs

Up to 2 iConnectAUDIO4+ fit comfortably in a standard 1U rack shelf


System Requirements



Macintosh

Mac OS X 10.8 or later
one free USB port




Windows

Windows 7 or later
one free USB port.

iOS

iOS 8 or later
CoreMIDI-compatible app**
